Description
The BL-CH 4 Mini is an advanced system for detecting and mapping methane (CH4) concentrations with high precision and accuracy based on TDLAS technology.

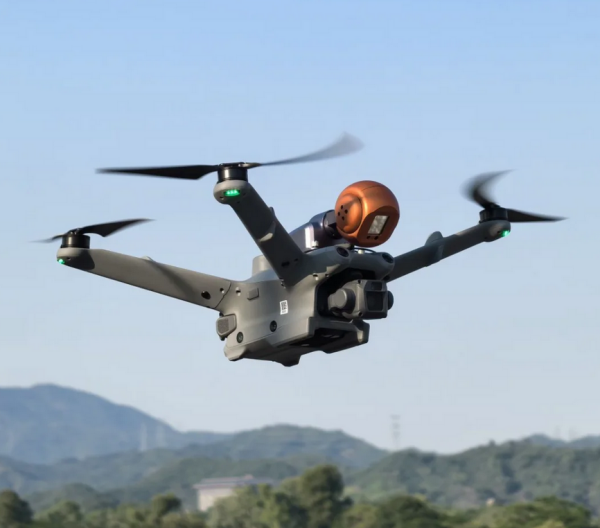

The BL-CH4 Mini is a drone-based methane detection sensor designed to revolutionize gas leak monitoring. It has been developed with the highest precision and offers unparalleled sensitivity, detecting methane concentrations as low as 5 ppm from a distance of 50 meters. Its lightweight design ensures seamless integration with the DJI Dock 2 and enables fast and efficient coverage of large areas such as landfills, oil fields, and industrial facilities.
Equipped with real-time data transmission and GPS mapping, the sensor provides accurate and actionable insights for locating leak sources. This reduces operating costs and increases safety by eliminating the need for manual inspections in hazardous areas.
- 50 m detection range
- 20 ms response speed
- Sensitivity: 5 ppm*m
- Concentration range: 0~99999 ppm*m
- precise localization of the leak
- Light weight: 220 g
Compatibility
3D/TD matrix
Scope of delivery:
1x BL-CH4 Mini - Methane detector for DJI M3D/TD (Dock 2)
Technical specifications
Arbeitsprinzip: TDLAS
Kompatible Plattform: DJI Dock 2, Matrice 3D/3TD
IP Schutzklasse: IP43
Gewicht (einschließlich Gimbal): 220g
Schnittstelle: E-Port
Gimbal: 2-Achsen-Stabilitätsverbesserung (Pitch, Roll)
Gimbal-Winkel: ±0.01°
Erkennungsabstand: 1~50m
Erfassungsbereich: 0~100000ppm*m
Diskrepanz: ±10%
Empfindlichkeit: 5ppm*m
Reaktionszeit: 20ms
Detektionslaser: Klasse 1, Augensicherheit
Anzeigender Laser: Klasse 3, Augenschädigung
Betriebstemperatur: -25-60°C
Luftfeuchtigkeit bei Betrieb: ≤95%RH (+25°C)
Leistungsaufnahme: 3W
Größe: 60*70*60mm
