Description

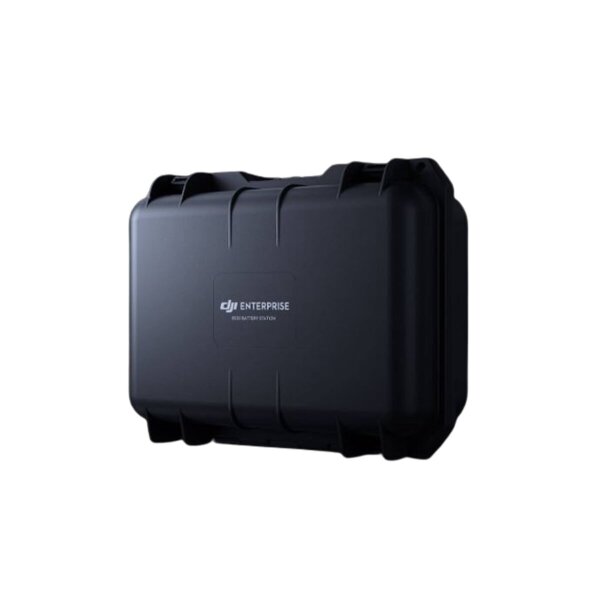

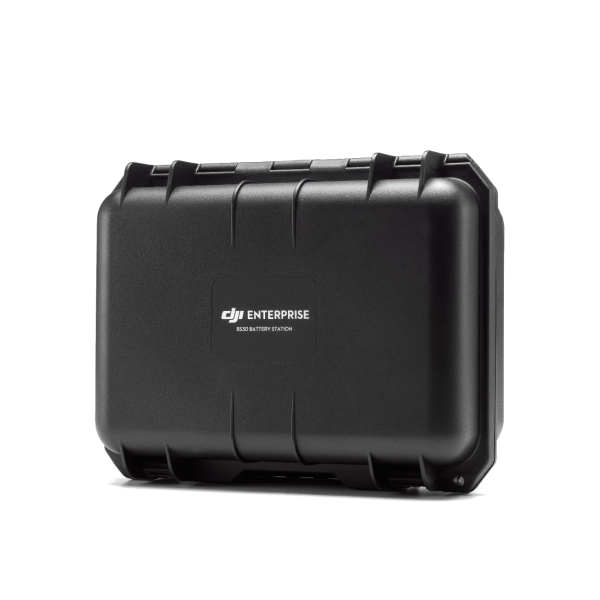

BS30 Intelligent Battery Station for DJI Matrice 30
The DJI BS30 Intelligent Battery Station is the official charging station for the DJI Matrice 30 Series (M30 and M30T), enabling fast and reliable battery charging directly in the field. Two TB30 Intelligent Flight Batteries are charged from 20 to 90% in approx. 30 minutes, while a full charge from 0 to 100% takes approx. 50 minutes. This allows battery pairs to be rotated seamlessly during operation.
Space for multiple battery pairs
The station features eight slots for TB30 Intelligent Flight Batteries (four battery pairs) and two slots for WB37 Batteries, such as those used in the DJI RC Plus remote controller. The TB30 batteries are charged sequentially in pairs. A USB-C port with up to 65 W and a 10 W USB-A port are also available, for example for charging smartphones or tablets.
Intelligent charging modes
Three charging modes ensure the batteries are prepared appropriately for each operational situation. In Storage Mode, the batteries are charged to 50% and maintained at this level, helping preserve their service life during extended storage. In Ready-to-Fly Mode, they are charged to 90% and maintained at that level so they are ready for use at any time. Standard Mode fully charges the batteries to 100%. At low temperatures, the batteries are automatically preheated before charging.
Safety and diagnostics
Comprehensive protection against reverse current, short circuits, overvoltage, overcurrent and overheating ensures a safe charging process. LED indicators show the status of each battery, and an acoustic signal sounds in the event of an error. Detailed error diagnostics are available via the Health Management System (HMS) in the DJI Pilot 2 app.
Robust and portable design
Measuring 353 × 267 × 148 mm and weighing approx. 3.95 kg when empty, the BS30 is well suited to mobile use, for example during inspections, surveying work or operations by public authorities and organisations with security responsibilities. According to the manufacturer, the station achieves an IP55 rating when the lid is properly closed. Power is supplied via 100–240 V AC, either from the mains or a suitable generator.
Scope of delivery
- 1x BS30 charging station
Technical data
Compatibility: TB30 Intelligent Flight Battery, RC Plus Battery
Compatible drone series: DJI Matrice 30 Series (M30 and M30T)
TB30 slots: eight slots for TB30 Intelligent Flight Batteries (four battery pairs)
WB37 slots: two slots for WB37 Batteries
TB30 charging time: approx. 30 minutes from 20 to 90%
TB30 full charge: approx. 50 minutes from 0 to 100%
TB30 charging method: sequentially in pairs
USB-C port: up to 65 W
USB-A port: 10 W
Charging modes: Three charging modes
Scope of delivery: 1x BS30 Battery Station
FAQ
Is the DJI M30 BS30 charging station suitable for mobile use?
The BS30 charging station is a portable solution. Its compact design is suitable for mobile use and makes transport easier, including during operations such as inspections or surveying work.
