Description

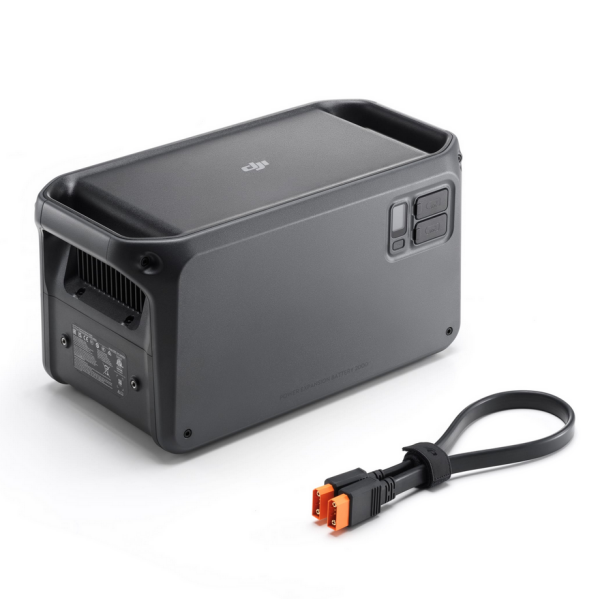

DJI Power Expansion Battery 2000 – Expansion battery for DJI Power power stations
The DJI Power Expansion Battery 2000 is an expansion battery with 2048 Wh that significantly increases the capacity and runtime of DJI Power power stations. It is compatible with the DJI Power 1000, Power 1000 V2, and Power 2000 and is suitable for professional use in the field, such as charging drone batteries during long days in the field, on construction sites, during film productions, or as an emergency power reserve. The Expansion Battery is not a standalone device and must always be operated together with a compatible power station.
Scalable power supply
Up to five Expansion Batteries can be connected to a DJI Power 1000 or Power 1000 V2, providing a total capacity of up to 11,264 Wh. With the DJI Power 2000, up to ten Expansion Batteries can be used, enabling up to 22,528 Wh. The output power depends on the power station used: up to 2400 W continuous output with the Power 1000 and up to 3000 W with the Power 1000 V2.
Fast charging
When used with a DJI Power 1000, the charging power reaches up to 1950 W, allowing 1024 Wh to be charged in approximately 36 minutes. Drone batteries are charged via the connected power station using the appropriate SDC fast-charging cable.
Durable and easy to handle
The LFP cells (lithium iron phosphate) retain more than 80% of their capacity even after 4000 charging cycles. Despite its 2048 Wh capacity, the Expansion Battery is hardly larger than the DJI Power 1000. The ports, buttons, and display are located on the front, allowing several units to be stacked conveniently; 1/4″ threads on the sides and rear make mounting easier.
Scope of delivery
1x Power Expansion Battery 2000
1x Power Expansion Battery 2000 cable
Technical data
Capacity: 2048 Wh (40 Ah)
Cell type: LFP (lithium iron phosphate)
Charging cycles: over 80% capacity after 4000 cycles
Ports: 2 × SDC
Input: 58.4 V, max. 60 A
Output: 40.0–58.4 V, max. 60 A
Continuous output power: up to 2400 W (with Power 1000), up to 3000 W (with Power 1000 V2)
Charging power: up to 1950 W (with Power 1000), 1024 Wh in approx. 36 minutes
Expandability: up to 5 units connected to Power 1000 / 1000 V2 (max. 11,264 Wh), up to 10 units connected to Power 2000 (max. 22,528 Wh)
Weight: approx. 16.5 kg
Dimensions: 448.5 × 225 × 234 mm (L × W × H)
Volume: approx. 23.5 l
Operating temperature (discharging): -10 to 45 °C
Charging temperature: 0 to 45 °C
Storage temperature: -20 to 50 °C
Lieferumfang
1x Power Expansion Battery 2000 1x Power Expansion Battery 2000 KabelFAQ
What is the DJI Power Expansion Battery 2000 designed for?
The DJI Power Expansion Battery 2000 is a 2048 Wh expansion battery for DJI Power power stations. It increases the capacity and runtime of a compatible power station and is suitable for professional field use, such as charging drone batteries during long days in the field, on construction sites, or as an emergency power reserve.
The Expansion Battery is not a standalone device and must always be operated together with a compatible power station.
Which DJI Power power stations are compatible with the Expansion Battery 2000?
The DJI Power Expansion Battery 2000 is compatible with the DJI Power 1000, DJI Power 1000 V2, and DJI Power 2000.
How much can the capacity be expanded with multiple Expansion Batteries?
Up to five DJI Power Expansion Batteries 2000 can be connected to a DJI Power 1000 or DJI Power 1000 V2. This enables a total capacity of up to 11,264 Wh.
Up to ten Expansion Batteries can be connected to the DJI Power 2000. This enables a total capacity of up to 22,528 Wh.
What output power and charging power are possible with the DJI Power Expansion Battery 2000?
The output power depends on the power station used. The DJI Power 1000 provides up to 2400 W continuous output, while the DJI Power 1000 V2 provides up to 3000 W.
When used with a DJI Power 1000, the charging power reaches up to 1950 W. This allows 1024 Wh to be charged in approximately 36 minutes.
How are drone batteries charged with the DJI Power Expansion Battery 2000?
Drone batteries are charged via the connected power station. The appropriate SDC fast-charging cable is used for this purpose.
