Description

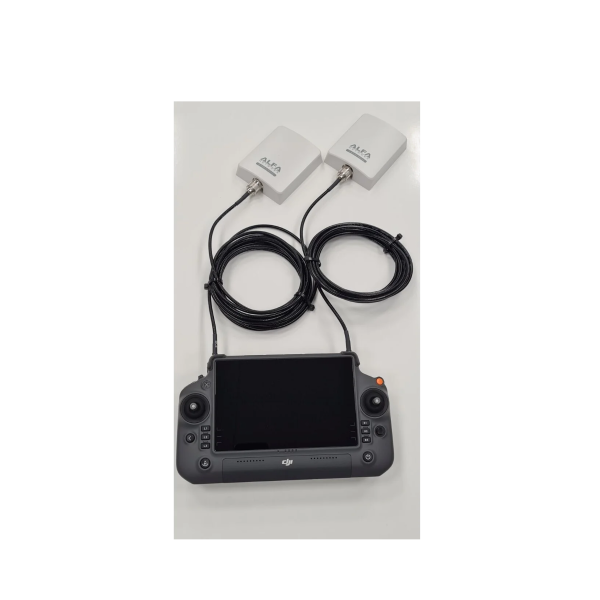

DJI RC Plus/RC Plus 2 – Antenna Extension
With the antenna extension for the DJI RC Plus and RC Plus 2, the antennas can be mounted separately from the remote controller using two 5-meter coaxial cables. This allows you to control the drone from inside an incident vehicle, for example, while positioning the antennas outside in a more suitable location. The pilot can communicate directly with the incident commander, and the vehicle body or other obstacles do not impair the connection.
Increased range with panel directional antennas
The two compact Alfa panel antennas with an antenna gain of 8 dBi focus the signal in the direction of the drone, enabling increased range and a more stable connection. They operate in the 2.4 and 5 GHz frequency bands and cover a wide area with a beamwidth of 90° horizontally and 40° vertically. The antennas can be mounted or attached to almost any surface.
Important note
Use of the antenna extension requires approval from the Bundesnetzagentur, as the radiated transmission power is increased.
Scope of delivery
-
2x SMA adapters
-
2x 5m cables
-
2x Alfa 2.4GHz/5GHz panel antenna 8 dBi
Technical data
Antenna type: Alfa panel antenna (directional antenna)
Number of antennas: 2
Antenna gain: 8 dBi
Frequency: 2.4–2.5 GHz and 5.1–5.9 GHz
Beamwidth: 90° horizontal, 40° vertical
Cable length: 5 m (2 cables)
Connection: SMA, with adapter for RC Plus / RC Plus 2
Approval: Use only with approval from the Bundesnetzagentur (increased transmission power)
FAQ
What is the antenna extension designed for?
The antenna extension allows you to mount the antennas of the DJI RC Plus or RC Plus 2 separately from the remote controller using two 5 m coaxial cables. The two panel directional antennas focus the signal towards the drone, enabling greater range and a more stable connection.
Can you use it to control the drone from an incident vehicle?
Yes. The antennas can be mounted outside in a more suitable location while you control the drone from inside the incident vehicle. This reduces the impact of the vehicle body or other obstacles on the connection.
What are the technical specifications of the antennas?
The two Alfa panel antennas have an antenna gain of 8 dBi. They operate in the 2.4 to 2.5 GHz and 5.1 to 5.9 GHz frequency ranges. The beamwidth is 90° horizontally and 40° vertically.
How can the antennas be mounted?
The Alfa panel antennas can be mounted or attached to almost any surface. The 5 m coaxial cables allow them to be positioned separately from the remote controller.
