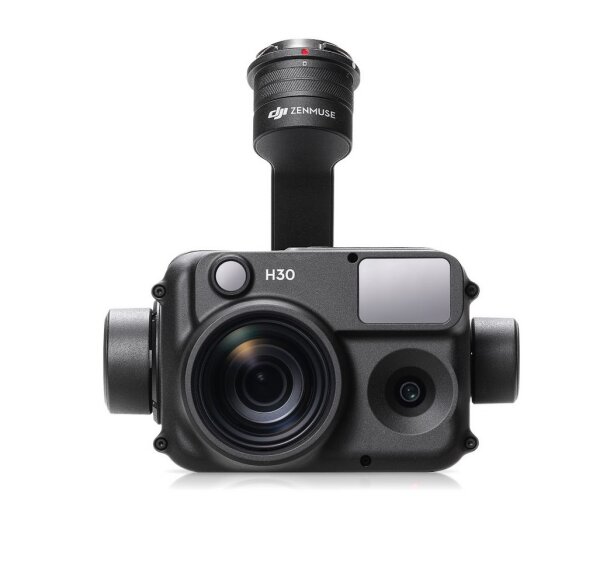

DJI Zenmuse H30 (12 months Care Enterprise Basic)

SKU: AC27233
Category: M350 accessories
  • GTIN: 6941565983114
The all-weather Zenmuse H30T has four main modules: Wide-angle and zoom camera, laser rangefinder and near-infrared auxiliary illumination. With advanced algorithms, it improves perception and imaging day and night and is suitable for public safety, energy monitoring, water protection and forestry. The H30T camera is compatible with the DJI Matrice M300 and M350 drones.
4.413,00 €
incl. 19% VAT , plus shipping costs (Paket)
  • Currently out of stock

Description

The DJI Zenmuse H30 is the latest professional camera for the DJI Matrice M350 RTK and DJI Matrice M300 RTK drones. The quality of the image recordings has been significantly improved and with its dust and water resistance it can be operated in any weather. It is equipped with a wide-angle camera, a zoom camera, a laser rangefinder, additional near-infrared (NIR) lighting and the latest electronic-digital additional functions, all of which enable a wide range of day and night applications, for example in public safety, energy monitoring, water protection and forestry.

Versatile performance, day and night

Zoom camera

  • Up to 34x optical zoom and 400x digital zoom
  • 40MP 1/1.8-inch CMOS sensor
  • Video resolution: Max. 3840 ×2160 at 30fps

Wide-angle camera

  • equivalent focal length: 24mm, DFOV: 82.1°
  • 48MP 1/1.3-inch CMOS sensor
  • Video resolution:Max. 3840 ×2160 at 30 fps

Laser rangefinder

  • Measuring range: 3 to 3000 m
  • Measuring accuracy: ≥ 500 m: ±(0.2 m + measuring distance x0.15 %) > 500 m: ±1.0 m

Additional NIR illumination

  • Wavelength: 850 nm
  • Field of vision: 4.6 ± 0.6° (round)
  • Safety class: Class 1
  • Illumination range: Circle with a diameter of approx. 8 m at a distance of 100 m

Wider and clearer view

Up to 34x optical zoom and 400x digital zoom

The Zenmuse H30 has a high-resolution 40MP zoom camera that supports up to 34x optical zoom and an impressive 400x digital zoom. Compared to the previous generation, it not only captures objects at a greater distance, but also captures more details.

More stable shots with the zoom camera
With DJI's latest image stabilisation algorithm, the Zenmuse H30 can effectively reduce camera shake during telephoto shots and delivers stable and clear images for detailed inspections of, for example, high-voltage power lines.

Max. 3000 m laser rangefinder
The laser rangefinder has a measuring range up to 2.5 times larger than the previous generation and precisely records the position data of objects within a range of 3 m to 3000 m, including the linear distance to the camera, the altitude and the GPS coordinates.

Improved night vision

Night vision in full colour
The zoom and wide-angle cameras of the Zenmuse H30 can switch to night mode in low light conditions to improve the live view and recording quality. This ensures continuous operation from day to night and enables efficient and precise use at night.

Supports black and white night vision and NIR illumination
In night mode, the Zenmuse H30 zoom camera supports IR light for infrared enhancement and NIR illumination. It switches the live transmission to a greyscale image by removing the infrared filter, enhancing the contrast between light and dark areas, making it easier to locate objects. When NIR illumination is activated, the zoom camera can also benefit from this, which is particularly useful for covert night surveillance and search and rescue operations.

More intelligent multi-scenario operations

Smart Capture for improved image capture

In Smart Capture mode, the zoom and wide-angle cameras of the Zenmuse H30 automatically determine the brightness of the ambient light and the dynamic range and apply intelligent image algorithms. This guarantees the output of photographs with natural transitions between light and dark and rich details, even in environments with high dynamics, strong or weak light.

Electronic fog removal
The Zenmuse H30 zoom camera uses a new electronic fog removal function to improve image sharpness in situations such as smog or high humidity. It enables low and high levels of defogging to suit different operating environments and requirements.

More reliable synchronisation storage of information

Supports pre-recordings
All Zenmuse H30 cameras support pre-recording. You can save recordings of 10, 15 or 30 seconds before the actual recording begins to ensure a more complete recording and capture important information that could otherwise be quickly lost
could otherwise be lost.

Media and transmission encryption with 1-click log deletion
The security code function enables encryption of microSD cards and fully protects your files. The AES-256 encryption technology ensures the security of data transmission between the remote control and the aircraft. In addition, it supports one-click log deletion to prevent information leakage.

Cloud Information Sync for collaborative ground and air operations
Users can access live views of the Zenmuse H30 via the DJI FlightHub 2 cloud platform to stay up to date with the situation on the ground. This enables fast remote control and facilitates coordinated air-to-ground operations.

Outstanding adaptability to the environment

IP54 protection rating
The Zenmuse H30 series is dust and waterproof to IP54 and can therefore be operated safely and reliably even under difficult conditions.

Operating temperature -20 to 50 °C (-4° to 122° F)
The Zenmuse H30 is designed for use in temperatures from -20° to 50° C (-4° to 122° F) and fulfils the requirements for all-weather operation.

Technical data

General

Dimensions
170 × 145 × 165 mm (L×W×H)

Weight
920 ± 5 g

Power output
H30: 28 W

Protection class
IP54

Under controlled laboratory conditions, it can achieve protection class IP54 in accordance with standard IEC 60529. The degree of protection is not permanently valid and may decrease due to product wear.

Supported aircraft
Matrice 300 RTK (requires the DJI RC Plus remote control)
Matrice 350 RTK

Environment

Operating temperature

-20 °C to 50 °C (-4° to 122 °F)

Storage temperature
-20 °C to 60 °C (-4° to 140 °F)

Gimbal

Stabilisation system
3-axis (tilt, roll, pan)

Angular oscillation range
Hover: ±0.002°
Flight: ±0.004°

Attachment
Detachable DJI SKYPORT

Mechanical range
Pitch: -132.5° to +73°
Roll: ±60°
Pan: ±328°
(Structural limit, no controllable range)

Controllable range
Tilt: -120° to +60°
Pan: ±320°

Operating modes
Follow/Free/Recentre

Zoom camera

Sensor
1/1.8 inch CMOS, effective pixels: 40 MP

Lens
Actual focal length: 7.1-172 mm (equivalent focal length: 33.4 to 809.3 mm)
Aperture: f/1.6 to f/5.2
Diagonal field of view: 66.7°-2.9°

Focus mode
MF, AFC, AFS

Exposure modes
Manual, Auto

Exposure compensation
±3.0 (1/3 increment)

Metering mode
Spot metering, intergral metering

AE lock
Supported

Electronic shutter
1/8000 - 2 s

ISO
Single shot: 100 - 25600
Night shot: 100 - 819200

Video resolution
Single shot: 3840 × 2160 at 30 fps, 1920 × 1080 at 30 fps
Night scene: 1920 × 1080 at 25 fps, 1920 × 1080 at 15 fps, 1920 × 1080 at 5 fps

Video format
MP4 VIDEO

Video subtitles
Supported

Video codec and bitrate strategy
H.264, H.265
CBR, VBR

Max. Photo resolution
7328 × 5496, 3664 × 2748

Photo format
JPG

Wide-angle camera

Sensor
1/1.3 inch CMOS, effective pixels: 48 MP

Lens
Actual focal length: 6.72 mm (equivalent focal length 24 mm)
Aperture: f/1.7
Diagonal field of view: 82.1°

Focus mode
MF, AFC, AFS

Exposure modes
Manual, Auto

Exposure compensation
±3.0 (1/3 increment)

Metering mode
Spot metering, intergral metering

AE lock
Supported

Electronic shutter
1/8000 - 2 s

ISO
Single shot: 100-25600
Night shot: 100 - 409600

Video resolution
Single shot: 3840×2160 at 30 fps, 1920×1080 at 30 fps
Night recording: 1920×1080 at 25 fps, 1920×1080 at 15 fps, 1920×1080 at 5 fps

Video format
MP4

Video subtitles
Supported

Video codec and bitrate strategy
H.264, H.265
CBR, VBR

Max. Photo resolution
8064×6048, 4032×3024

Photo format
JPG

Laser rangefinder

Wavelength
905 nm

Measuring range
3 - 3000 m
Range for general objects: Meadows 2000 m, forests 1900 m, road surfaces 1700 m*

The measuring range can vary depending on the material and shape of the tested object as well as the influence of the gimbal angle, ambient light and weather conditions such as rain or fog. If a laser pulse hits several targets, its energy is distributed, which can reduce the measurable range. * Test conditions: Flat surface of the object, size of the object larger than the laser beam diameter, atmospheric visibility of 23 km (shorter range in clear weather compared to cloudy conditions), laser incident at an oblique angle (with an angle of incidence of approx. 0.2 radians).

Measuring accuracy
≥ 500 m: ±(0.2 m + subject distance x 0.15 %)
> 500 m: ±1.0 m

Size of the laser dot
At 100 m: approx. 50 × 450 mm
At 1000 m: approx. 450 × 4500 mm

Safety regulation level
Class 1

Accessible emission limit (AEL)
260 nJ

Reference aperture
18 mm

Max. Laser pulse emission power within 5 nanoseconds
52 W

NIR auxiliary illumination

Wavelength
850 nm

Field of view
4.6 ± 0.6° (round)

Safety regulation level
Class 1

Illumination range
At 100 m: approx. 8 m circle diameter

Special functions

Optical hybrid zoom
34x

Maximum zoom
400x

Link Zoom
Supported

Click to aim
Supports

High resolution raster photos
Supported

Night scene
Supported

Timestamp
Supported

Smart recording
Supported

Video pre-recording
Supported

Clock infrared image
Supports

Data storage
Supported microSD cards
U3/Class10/V30 or higher is required, or use a memory card from the recommended list.

Supported file systems
exFAT

Recommended microSD cards
SanDisk Extreme Pro V30 A1 32 GB microSDHC
Lexar 1066x V30 A2 64 GB/128 GB/256 GB/512 GB microSDXC
Kingston Canvas Go! Plus V30 A2 64 GB/128 GB/256 GB/512 GB microSDXC

Zenmuse H30 has a security code function. Under Data and Privacy in DJI Pilot 2, you can set the code to encrypt the microSD card installed in the camera. Download the DJI Decrypt Tool from the official DJI website to decrypt the microSD card on a Windows computer and access the card contents.

Post-processing software

Mapping software
DJI Terra, DJI FlightHub 2

Scope of delivery

1x Zenmuse H30 drone camera

1x lens cap

1x microSD card (64 GB)

1x hard case

1x lens cleaning cloth
