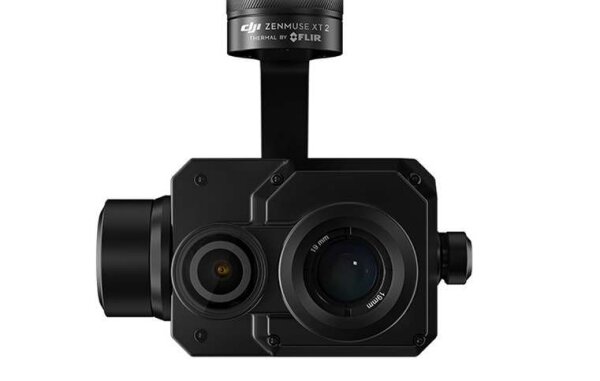

DJI Zenmuse XT2 - Thermal imaging camera

SKU: AC24447
Category: Cameras
  • GTIN: 4251522803518
Combination of a high-resolution Flir TAU 2 infrared camera and a 4K view camera. Create professional aerial images for meaningful information that can save time, money and lives.
6.000,00 €
incl. 19% VAT , plus shipping costs (Paket)
5.042,02 € excl. VAT
Manufacturers recommended retail price: 6.900,00 €
(Save 13.04%, i.e. 900,00 €)
  • Currently out of stock
Resolution
Frame rate
Focal length
  • Currently out of stock

Description

Variants (ask Airclip for advice):

  • Infrared camera resolution 640 / 336 pixels
  • thermal image frequency 9 or 30 Hz
  • Thermal imaging lenses: 9 mm, 13 mm, 19 mm, 25 mm

Robust thermal imaging solution with dual sensors

The advanced FLIR radiometric temperature sensor is housed together with the 4K vision sensor in a weatherproof housing, seamlessly integrated with DJI's enterprise drones.

  • <50 mK thermal sensitivity (NEDT)
  • 12 megapixel view camera
  • 30 Hz max. thermal frame rate
  • IP44 certified - protection against dust and water

Obtain usable information in real time

Thanks to a large number of processors and image recognition algorithms, the virtual intelligence of the XT2 helps the teams on site to filter information immediately instead of in lengthy analyses.

Temperature alarm

Immediate notifications inform you if an object has exceeded predefined temperature thresholds.

Applications

FLIR cameras reveal minute temperature differences that are invisible to the naked eye. This new view of the world helps to recognise which facilities or buildings are damaged, where missing persons are located and much more besides:

  • Firefighting
  • High-voltage power lines
  • Hazardous goods
  • Agriculture
  • Roof inspections
  • Rescue services
  • Solar panel inspections
Compatible with the M200 series and the M600 Pro.

Characteristics

Shipping weight: 0,50 kg
Item weight: 0,30 kg
Schutzklasse: IP 44
thermische Bildfrequenz: 30 Hz
Wärmebildempfindlichkeit: 50 mK
Kamera:
  • Wärmebild: 640 x 512 pixel, 7,5 - 13,5 µm
  • RGB: 12 MP

Scope of delivery

  • 1 x DUAL camera DJI XT2 incl. lens
