AVSS - PRS-M300/M350 parachute system with remote control for DJI M300 series

SKU: AC27188
Category: M350 accessories
  • GTIN: 4251522814200

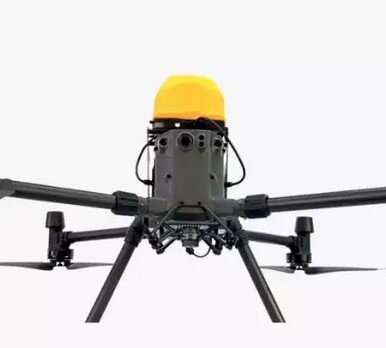

A parachute system for easy integration with the DJI Matrice 300 series drone system. The attachment secures the parachute without interfering with the sensitive GPS modules and allows safe take-offs and landings with different payloads. The system includes an electronic module to power the parachute container and the flight abort system, which switches off the drone's propulsion system. An automatic release device and a separate remote control are used to deploy the parachute.

4.999,00 €
incl. 19% VAT , plus shipping costs (Paket)
  • Available immediately
  • Delivery time: 2 - 3 Workdays  (DE - int. shipments may differ)
  • Available immediately
  • Delivery time: 2 - 3 Workdays  (DE - int. shipments may differ)

Description

The AVSS - PRS-M300/M350 Parachute is designed for easy integration with the DJI Matrice 300 series drone system, which includes the DJI M350. The attachment secures the parachute without interfering with the sensitive GPS modules and enables safe take-offs and landings with different payloads. The system includes an electronic module to power the parachute pod and the Flight Termination System (FTS), which shuts down the drone's propulsion system. The on-board system is equipped with an automatic parachute deployment device in case a critical failure is detected during flight. A separate remote control for manual deployment of the parachute enables constant control. This parachute system complies with the ASTM F3322-18 standard, the first standard for drone parachutes.

Scope of delivery


1x Parachute Pod
1x manual remote control for manual deployment
1x electronic module with battery
1x Flight abort system
1x Automatic trigger
1x mounting bracket
1x transport case
Warranty for 1 year or 3 releases
CAA & ASTM F3322 documentation for civil aviation authorities

Key features

  • Field replaceable parachute pods
  • Plug-and-play flight abort system
  • Automatic deployment in less than 0.5 seconds
  • Greater than 2 km range
  • ASTM F3322 and third-party documentation relevant to civil aviation authorities for flights over people (FAA), complex operations (TC), scenario 3 (DGAC)

Technical specifications

  • Total weight: 922 grams / 2.03 lbs
  • Average descent rate (7.70 kg): 3.24 mps / 10.62 fps
  • Average sink rate (9.20 kg): 3.54 mps / 11.61 fps
  • Average impact energy (7.70 kg): 40.30 J / 29.80 ft-lb
  • Average impact energy (9.20 kg): 57.60 J / 42.50 ft-lb
  • Minimum deployment height (7.70 kg): 44.60 m / 146.33 ft
  • Minimum deployment height (9.20 kg): 50.80 m / 166.67 ft

System overview

  • Total weight: 922 grams / 2.03 lbs
  • Parachute reuse method: Pre-packed capsules
  • Deployment technique: Non-explosive
  • Deployment Trigger: Manual and/or autonomous
  • Flight abort system: Yes
  • Independent remote control: Yes
  • 1 year warranty; 3 deployments

System characteristics

  • Weight of main system: 650 grams / 1.43 lbs
  • Deployment speed: 20 ms
  • Deployment full inflation: 0.57 s to 1.30 s
  • Battery life: 6 hours
  • Operating temperature: -20C° to +50C°

Parachute Pod

  • Parachute size: 5.5 m²
  • Riser / mounting location: Internal

Mounting bracket

  • Weight of the mounting bracket: 272 grams / 0.60 lbs
  • Material: Carbon fibre / Aluminium
  • Mounting location: Top mounted

Independent remote control

  • Range: <2 km / <1.24 mi
  • Frequency: 915 MHz / 868 MHz

PRS-M300 USER MANUAL (APRIL 2022 - V2.0)

Calibration video instructions can be found on the AVSS YouTube channel

Calibration while connected to the drone

Calibration using the GPC case

Characteristics

Shipping weight: 3,95 kg
Item weight: 3,95 kg
