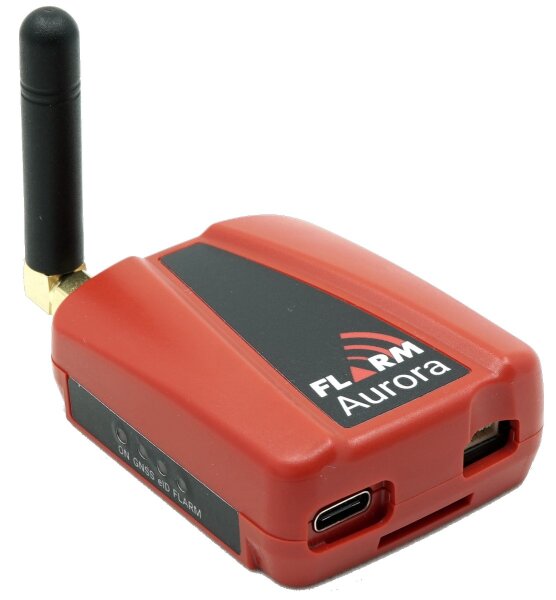

FLARM module Aurora

SKU: AC27184
Category: M350 accessories

Essential traffic safety for manned aircraft and drones

FLARM Aurora is a combined FLARM and Remote ID transmitter in one tiny package, making your drone visible to more than 60,000 manned aircraft. Aurora combines a FLARM and a Wi-Fi module for direct remote identification.

419,00 €
incl. 19% VAT , plus shipping costs (Paket)
  • Currently out of stock

Description

Aurora can be mounted on a drone with minimal effort. It only requires a small antenna for the FLARM radio, the antennas for Wi-Fi and GPS are fully integrated. The system is powered via USB-C and is therefore ready for use in less than 5 minutes, whereby the power supply can also be ensured via the JST-GH connector with a voltage range of 5 V to 28 V.
Aurora comes with a mounting clip for quick deployment. It also includes a web app that
allows easy checking of the system status and configuration or updating of the software and is compatible with mobile phones or computers.

The Direct Remote ID uses the 2.4 GHz (Wi-Fi) band and is compliant with the international standards / norms ASTM F3411-19 and ASD-STAN prEN 4709-002, which are specified in many national regulations.

Aurora is particularly well suited for UAV operations where encounters between manned aircraft and UAVs are expected. The UAV becomes visible to other FLARM-equipped aircraft such as police or rescue helicopters and thus prevents interactions / collisions.

Scope of delivery:

  • 1x FLARM transponder
  • 1x antenna
  • 1x cable
  • 2x mounting clip
  • 2x adhesive pad

Compatibility:

  • DJI Matrice 210
  • DJI Matrice 300
  • DJI Matrice 30
  • DJI Mavic 2 (incl. Enterprise)
  • DJI Mavic 3
  • Autel EVO 2 series

Technical Data

  • Dimensions: 57x44x21 mm (without plug)
  • Weight: 50 g (without cable)
  • Housing: Moulded polycarbonate (red)

Interface

  • SMA-RP: FLARM antenna
  • USB-C: 5 V power supply
  • JST-GH: Power supply 5..28 V
  • User interface: 4 two-colour LEDs, fact. Standard switch, Wi-Fi web app

Radio

  • Frequency range: 868 MHz, transmit only
  • Radio power: 25 mW
  • Direct Remote ID:
    2.4 GHz Wi-Fi NAN
    ASTM F3411-19
    ASD-STAN prEN 4709-002
  • Power: 1.4 W
  • Operating temperature: -20 to +70 °C

Conformity: CE/ETSI, RED, RoHS
